    1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT14HV002C
    Certification : ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

    1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

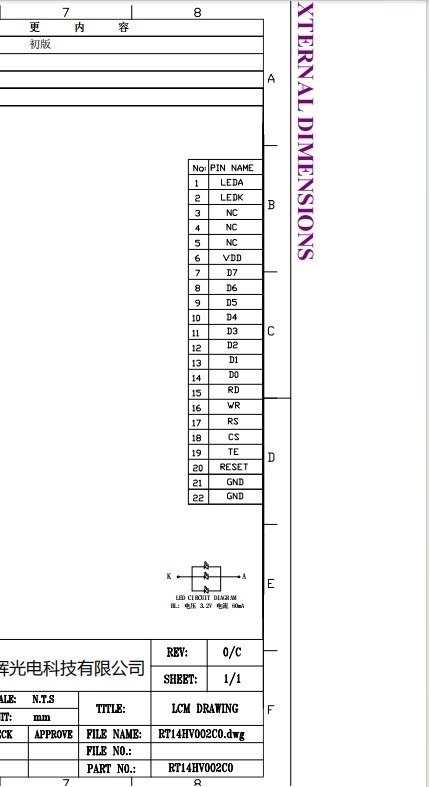

    NO.SymbolLeveFunction
    1LEDALED,anode
    2LEDKLED,cathode
    3-5NCNC
    6VCC2.8Vsystem voltage
    7-14DB7-DB0data bus.
    15RD-Read enable in 8080 MCU parallel interface
    16WR-Write enable in MCU parallel interface
    17RS-Display data/command selection pin in parallel
    interface
    18CS-Chip selection pin
    19TETE
    20RESETThis signal will reset the device and it must be
    applied to properly
    21-22GNDGround

    1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

    1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

    Custom LCD FAQ


    1. Are you a factory or a trading company?

    we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.



    2.What are our main products?

    Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels



    3.What kind of certification do we have?

    Our factories have passed ISO9001, 14001 and other certifications.


    4. What size LCD display can you provide?

    0.96 inch to 21.5 inch TFT LCD display we can provide.
