    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT14QV003A
    Certification : ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

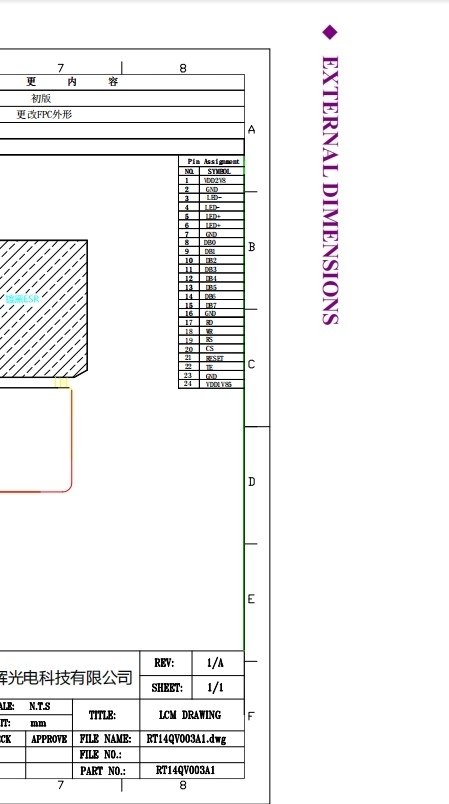

    NO.SymbolLevelFunction
    1VCC2.8VPower Supply for Analog,Digital System and Booster
    Circuit.
    2GMDPOWER GROUND
    3-4LEDKLED CATHODE
    5-6LEDALED ANODE
    7GNDPOWER GROUND
    8-15DB0-DB7Data bus
    16GNDPOWER GROUND
    17RDRead enable in 8080 MCU parallel interface
    18WRWrite enable in MCU parallel interface.
    19RSDisplay data/command selection pin in parallel
    interface.
    20CSChip selection signal
    21RESETThis signal will reset the device and it must be applied to
    properly initialize the chip
    22TETE
    23GNDPOWER GROUND
    24IOVCC1.8VPower Supply for I/O System.

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    1.4 Inch Digital Watch Full HD TFT Display Screen 240x240 with ALLo'clock Viewing Angle and ST7789V Driving IC

    Custom LCD FAQ


    1. Are you a factory or a trading company?

    we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.



    2.What are our main products?

    Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels



    3.What kind of certification do we have?

    Our factories have passed ISO9001, 14001 and other certifications.


    4. What size LCD display can you provide?

    0.96 inch to 21.5 inch TFT LCD display we can provide.
