    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT154029B
    Certification : ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    ItemSpecification

    Size

    1.54inch

    Display mode

    Transmissive TFT

    Part NO.

    RT154029B

    Resolution

    240*240

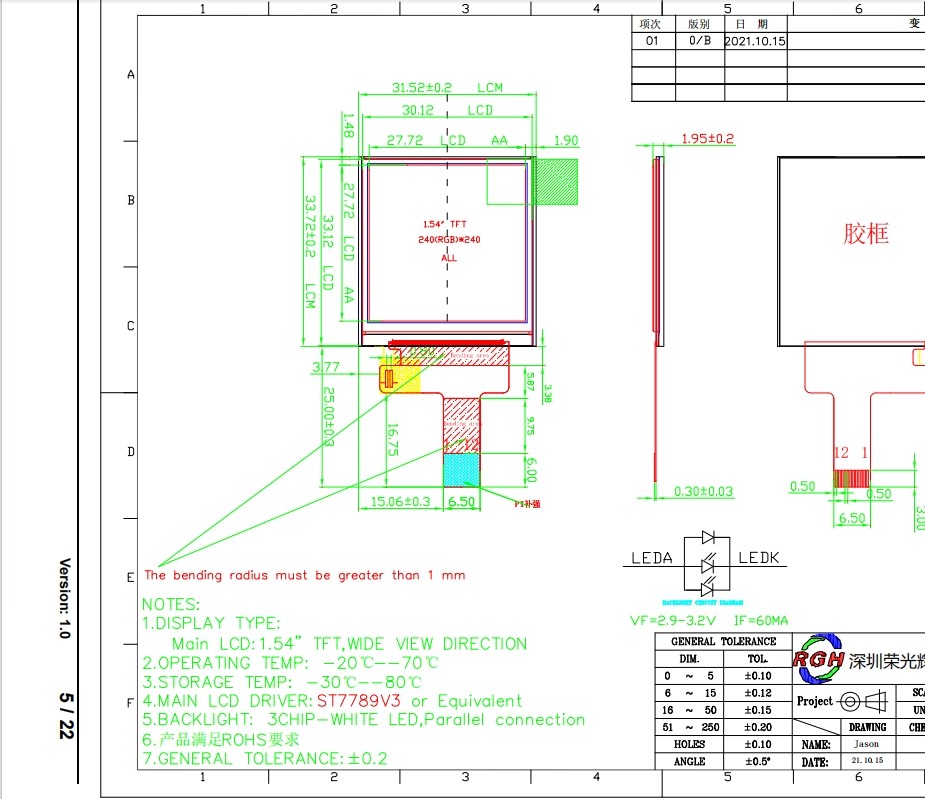

    Outline size

    31.52 (W) X33.72 (H) X1.95(T)

    Active area

    27.72(W) X27.72 (H)

    View direction

    ALL o’clock

    Piexl pitch

    240X(RGB)X240

    Interface

    RGB

    Backlight

    3LEDS

    Surface luminance

    500cd/m2

    Logic voltage

    2.5V-3.3V

    Operating temperature

    -20℃~70℃

    Storage temperature

    -30℃~80℃

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    NO.SymbolLevelFunction
    1GNDGround.
    2LEDKLED,cathode.
    3LEDALED,anode.
    4VCC2.8VPower setting
    5GNDGround.
    6GNDGround.
    7D/Ccommand selection pin in 4-line serial interface
    8CsChip selection pin
    9SCLThispin is used to be serial interface clock
    10SDASPI interface input/output pin
    11RESETThis signal will reset the device and it must be applied to properly
    12GNDGround.

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    1.54 Inch Square TFT Display LCD Screen with ST7789V3 Driver For Home Appliance

    Custom LCD FAQ


    1. Are you a factory or a trading company?

    we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.



    2.What are our main products?

    Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels



    3.What kind of certification do we have?

    Our factories have passed ISO9001, 14001 and other certifications.


    4. What size LCD display can you provide?

    0.96 inch to 21.5 inch TFT LCD display we can provide.
