1.5inch HD TFT LCD Display Module Color Screen 480x240 Camera For
Smart Drone
Product Specification
| Screen Size | 1.5 inch |
| Resolution | 480X 240 |
| Display Type | Thin Film Transistor Liquid Crystal Display |
| Brightness | 180 cd/m² |
| Interface | RGB |
| Driving IC | OTA5182A-C2 |
| Response Time | 35 ms |
| Active area | 29.76(H) X22.32 (V) mm |
About this item
This 1.5-inch TFT LCD display offers a resolution of 480x240
pixels, providing clear and detailed visuals for a variety of
applications. With a 35ms response time, it delivers smooth
transitions for fast-moving content. The display utilizes an RGB
interface for vibrant color output and has an LED backlight for
better visibility in different lighting conditions. Its wide
operating temperature range from -20°C to 70°C makes it versatile
for use in diverse environments. The active area measures 29.76mm
by 22.32mm, and the module is powered by a driving IC, OTA5182A-C2.
It's a solid choice for projects that don’t require a touchscreen
but need a high-quality, compact display for sharp visuals. Whether
you're designing handheld electronics or a display module for
embedded systems, this screen could be a great fit.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | VDD_25 | | 1UF/25V |
| 2 | VDD_3 | | 1UF/25V |
| 3-11 | NC | | NC |
| 12 | AGND | VSs | Ground. |
| 13 | NC | | NC |
| 14 | ACAC | | 1UF/25V |
| 15 | FRP | | 6PIN |
| 16 | VCOM | | VCOM |
| 17 | DRV | | DRV |
| 18 | FB | | FB |
| 19 | LED- | | LED,cathode. |
| 20-21 | DUMMY | | DUMMY |
| 22 | LED+ | | LED,cathode. |
| 23 | GND | VSs | Ground. |
| 24 | VCC | | system voltage |
| 25 | VSYNC | H/L | Frame synchronizing signal for RGB. |
| 26 | HSYNC | H/L | Line synchronizing signal for RGB. |
| 27 | DCLK | H/L | Dot clock signal for RGB. |
| 28-35 | DIN0-7 | H/L | Data bus. |
| 36 | SDA | | SDA |
| 37 | SCL | | SCL |
| 38 | SCEN | | CS |
| 39 | SHDB | | SHDB |
| 40 | CREST | | RESET |

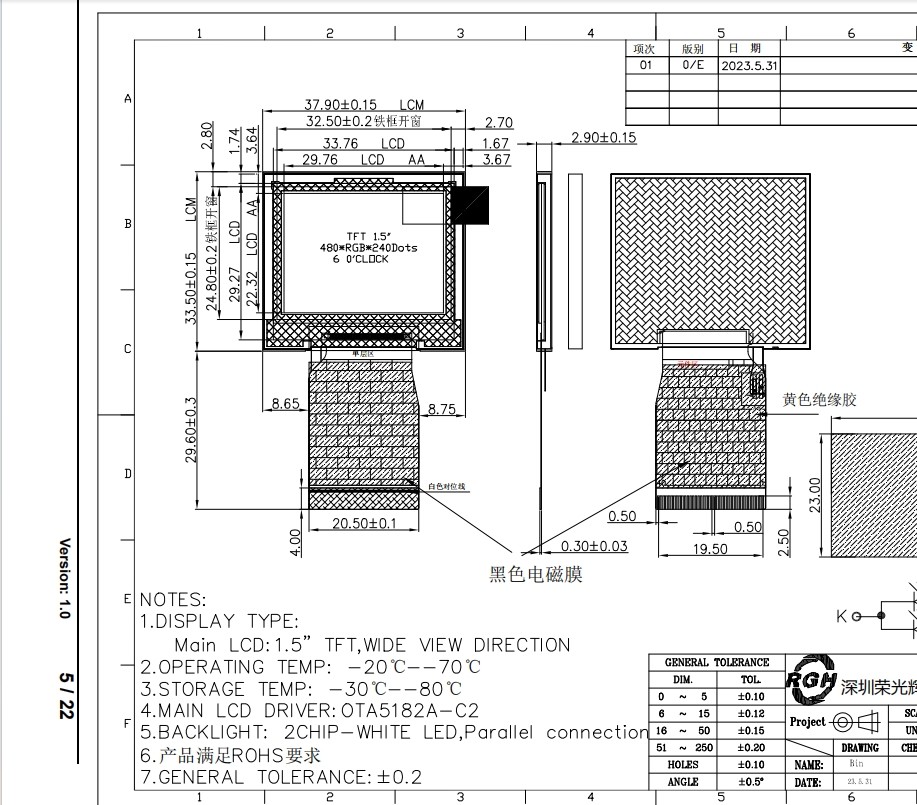

External Dimensions
