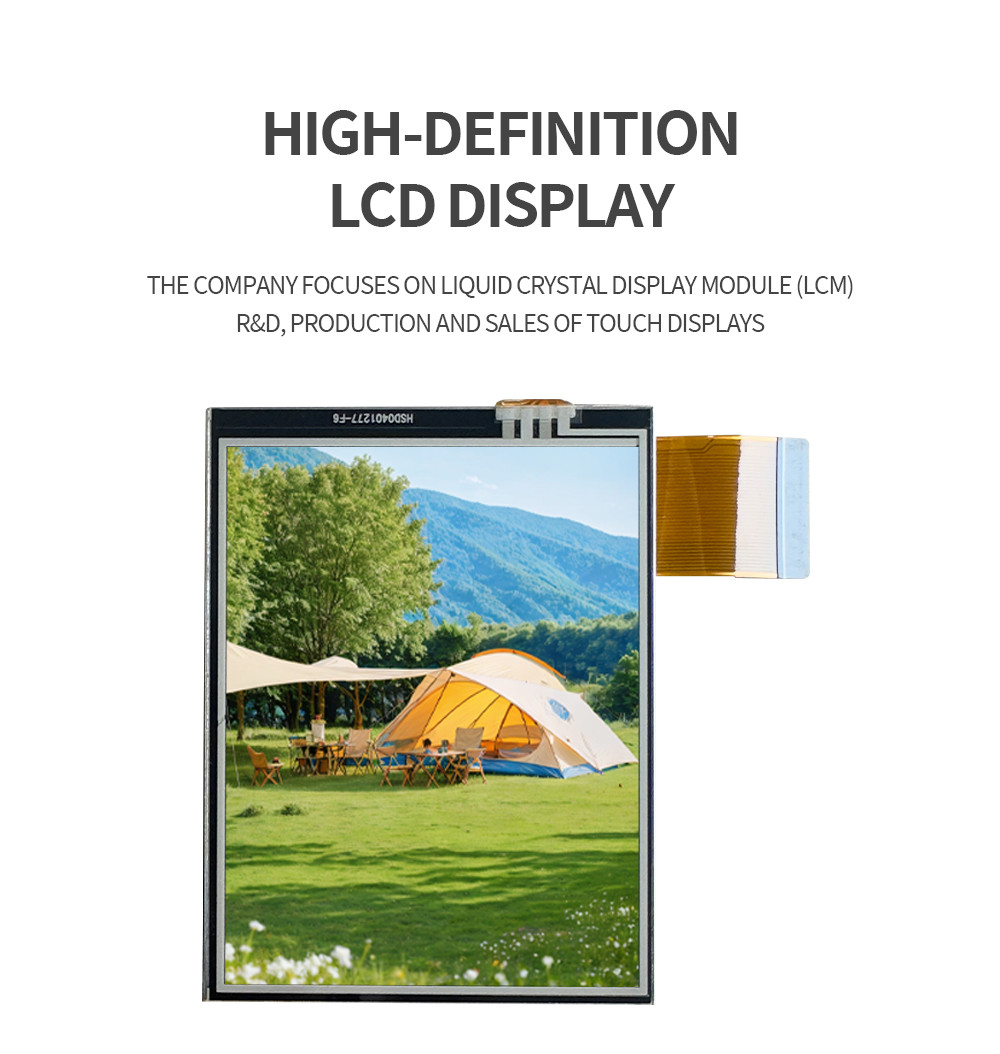

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RTP35QV011A
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    NO.SymbolLevelFunction
    1DEData enable signal for RGB interface operation
    2-4GNDGround.
    5NCNC
    6-11R0-R5data bus
    12-17G0-G5data bus
    18-23B0-B5data bus
    24SCLSerial clock input for SPl interface.
    25SDASerial data inputloutput bidirectional pin for SPI Interface.
    26CSchip select signal
    27DCLKDot clock signal for RGB interface operation
    28RESETReset pin
    29HSLine synchronizing signal for RGB interface operation
    30VSFrame synchronizing signal for RGB interface operation
    31VCCPower Supply (Analog)
    32IOvCCPower Supply (Logic)
    33GNDGround.
    34LEDABack Light Power Supply Anode(+)
    35LEDKBack Light Power Supply Cathode(-)
    36GNDGround.
    37XRTouch Panel XR
    38YDTouch Panel YD
    39XLTouch Panel XL
    40TUTouch Panel YU

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    3.5 Inch Touch Display 240x320 TFT IPS LCD Touchscreen HD Module RGB 18bit

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
