    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT18QQ032B
    Certification : ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance


    Size1.8 inch
    Resolution128(RGB)X160
    InterfaceMCU
    Luminance500cd/m2
    Driving ICST7735P3-G5
    Operating temperature-20℃~70℃
    Storage temperature-30℃~80℃

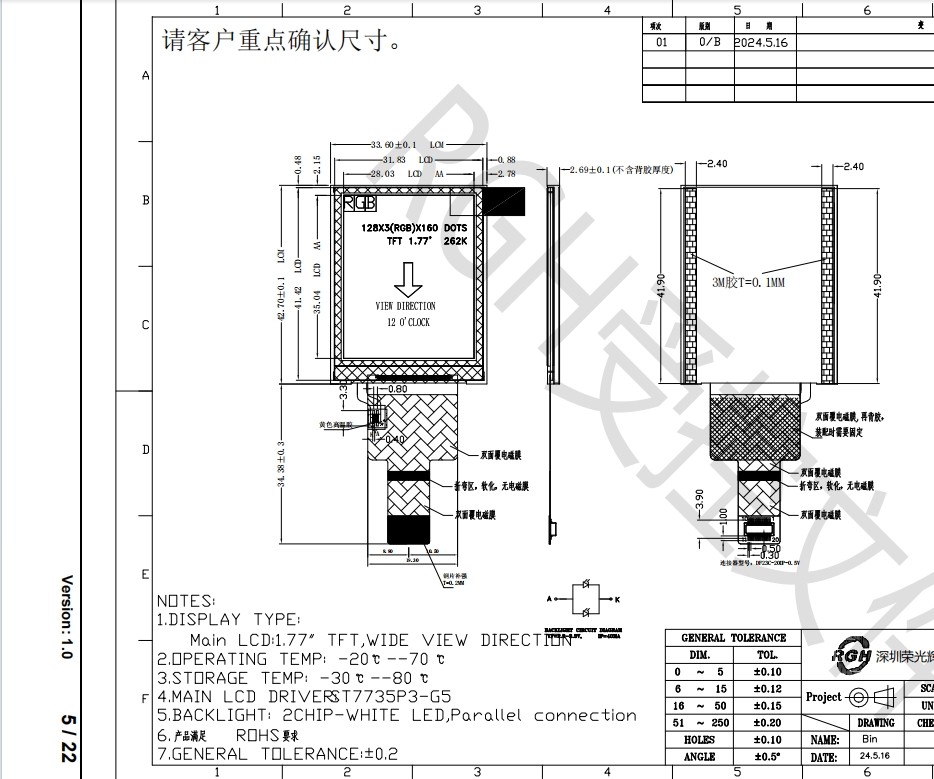

    Outline Dimension164.9*100*4.6(W x H x D) (mm)

    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 LuminanceLCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

    NO.
    Symbol
    Level
    Function
    1
    LEDK
    LED cathode
    2
    LEDA
    LED anode
    3
    GND
    Ground
    4
    VDD
    Power setting
    5-6
    NC
    NC
    7
    /CS
    -Chip selection pin
    8
    RST
    This signal will reset the device and it must be applied to
    properly
    9
    RS
    -Display data/command selection pin in parallel interface
    10
    /WR
    -Write enable in MCU parallel interface
    11
    /RD
    Read enable in 8080 MCU parallel interface
    12-19
    D7-D0
    data bus.
    20
    GND
    Ground
    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 LuminanceLCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

    LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 LuminanceLCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
