    Smart Handheld TFT Meter Display Color LCD Module 1.8Inch

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT18QQ009A
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

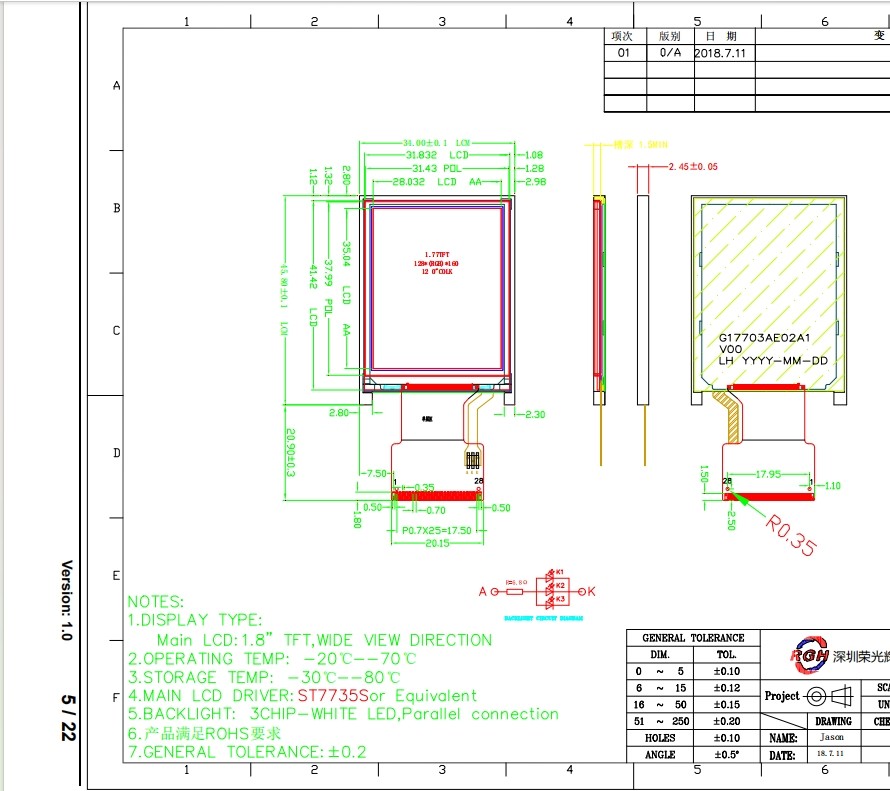

    Smart Handheld TFT Meter Display Color LCD Module 1.8Inch

    Smart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8Inch

    NO.SymbolLevelFunction
    1GNDGround
    2TETE
    3GNDGround
    4DB7data bus
    5CS-Chip Selection Pin
    -Low Enable.
    6DB6D[15:0]are used as MCU parallel interface data bus.
    7GNDGround
    8DB5D[15:0]are used as MCU parallel interface data bus.
    9GNDGround
    10DB4D[15:0]are used as MCU parallel interface data bus.
    11GNDGround
    12DB3D[15:0]are used as MCU parallel interface data bus.
    13GNDGround
    14DB2D[15:0]are used as MCU parallel interface data bus.
    15GNDGround
    16DB1D[15:0]are used as MCU parallel interface data bus.
    17GNDGround
    18DB0D[15:0]are used as MCU parallel interface data bus.
    19GNDGround
    20WR-Write Enable in MCU Parallel Interface.
    21GNDGround
    22RS-Display datalcommand Selection Pin in MCU
    Interface.
    -D/CX='1':Display Data or Parameter.
    -D/CX='o³:Command Data.
    23RESET-This signalwill reset the device and it must be
    applied to properly
    initialize the chip.
    -Signal is active low.
    24VDDPower Supply for Analog,Digital System and
    Booster Circuit.
    25GNDGround
    26LEDALEDA
    27LEDKLEDK
    28GNDGround

    Smart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8Inch

    Smart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8InchSmart Handheld TFT Meter Display Color LCD Module 1.8Inch

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
