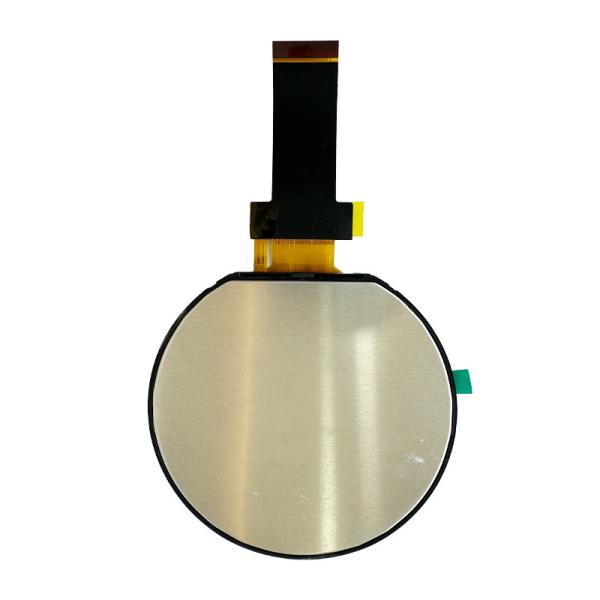

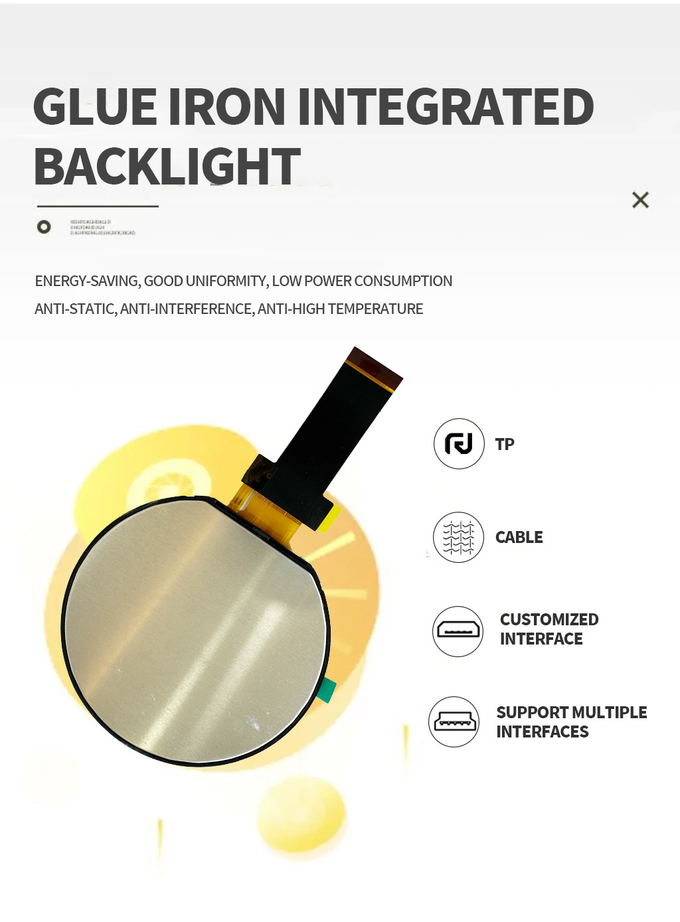

40 Pin Circular TFT LCD Screen Display 360x360 RGH 3.6 Inch ST72566
Product Specification
| Size | 3.6inch |
| Resolution | 360 x 360 |
| Driver Ic | ST72566 |
| Touchsreen | NO |
| Pin Number | 40 pins |
| Viewing Direction | ALL o’clock |
| Brightness | 1000cd/m2 |
| Interface | RGB |
About this item
This 3.6-inch circular LCD display, driven by the ST72566 IC,
offers a resolution of 360x360, providing clear and vibrant visuals
for a wide range of applications. With a contrast ratio of 1200:1
and an impressive brightness of 1000cd/m², this display delivers
excellent visibility, even in bright ambient conditions.
The display features an RGB interface, ensuring efficient
communication with external components, and supports an operating
voltage range of 3.0V to 3.6V. It operates with a quick response
time of 30ms, ensuring smooth transitions for static and dynamic
content. The viewing direction supports an "ALL O'clock" viewing
angle, providing optimal visibility from any angle.
The LCM dimensions are 98.88mm (H) x 94.12mm (V) x 7.70mm (T), with
an active viewing area of 89.76mm (H) x 83.49mm (V), offering a
sizable screen for custom interfaces, notifications, or data
presentation. It’s designed to function in a wide temperature
range, from -30°C to 80°C for operation and -35°C to 85°C for
storage, ensuring reliability in diverse environmental conditions.
Ideal for industrial, automotive, or consumer electronic
applications where a larger display is needed in a compact circular
format, this LCD display provides a robust and high-performance
solution for many use cases.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDK | | LEDK |
| 2 | LEDA | | LEDA |
| 3 | GND | | Ground |
| 4 | VCC | | Power setting |
| 5-12 | R0-R7 | | Red data |
| 13-20 | G0-G7 | | Green data |
| 21-28 | B0-B7 | | Blue data |
| 29 | GND | | Ground |
| 30 | CLK | | Pixel clock |
| 31 | DISP | | DISP pull low is Standby mode;Normally pull high |
| 32 | HS | | Horizontal Sync input |
| 33 | VS | | Vertical Sync input |
| 34 | DEN | | Data input enable |
| 35 | NC | | No connection |
| 36 | GND | | Ground |
| 37 | NC(XR) | | No connection |
| 38 | NC(YD) | | Noconnection |
| 39 | NC(XL) | | No connection |
| 40 | NC(YU) | | No connection |
