2.5V-2.8V MIPI Circular TFT LCD Display Module 220cd/㎡ RT21WV001A
Product Specification
| Size | 2.1 inch |
| Resolution | 480(RGB)X480 |
| Display mode | Transmissive TFT |
| Outline size | 56.18(W) X59.71 (H) X2.26(T) |
| Active area | 53.28(W) X53.28(H) |
| View direction | ALL o’clock |
| Interface | MIPI |
| Backlight | 4LEDS |
About this item
The 2.1-inch TFT display module offers a high-resolution visual
experience, featuring a 480x480 pixel resolution in an RGB
arrangement. With a transmissive TFT technology, this display is
designed to provide vibrant, clear visuals, making it suitable for
a wide range of applications where image clarity is critical in a
compact format.
This module has an active display area of 53.28mm x 53.28mm, which
ensures that the screen is large enough for detailed graphics and
text, yet small enough to be integrated into portable devices. The
220cd/㎡ surface luminance provides good visibility in most lighting
conditions, while the 4-LED backlight helps maintain brightness and
contrast.
Designed with a wide viewing angle (ALL O’clock), the display
ensures consistent color and image quality from multiple
perspectives, ideal for user interfaces or devices that require
multi-directional viewing. The module's interface is based on the
efficient MIPI (Mobile Industry Processor Interface), ensuring fast
data transfer and low power consumption.
Operating in a temperature range from -20°C to 70°C and with a
storage temperature range from -30°C to 80°C, this display is built
to endure diverse environmental conditions, making it suitable for
both indoor and outdoor use.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDK | | LED power cathode |
| 2 | LEDA | | LED power anode |
| 3 | GND | | Ground |
| 4 | VDD | | Power setting |
| 5 | D0N | | MIPI Data pin Positive |
| 6 | D0P | | MIPI Data pin Positive |
| 7 | GND | | Ground |
| 8 | CKN | | Mipi clock signal |
| 9 | CKP | | Mipi clock signal |
| 10 | GND | | Ground |
| 11 | D1N | | MIPI Data pin Positive |
| 12 | D1P | | MIPI Data pin Positive |
| 13 | GND | | Ground |
| 14 | VS | | Frame synchronizing signal for RGB. |
| 15 | HS | | Line synchronizing signal for RGB. |
| 16 | PCLK | | Dot clock signal for RGB. |
| 17 | DE | | DE |
| 18 | B0 | | Data bus. |
| 19 | B1 | | Data bus. |
| 20 | B2 | | Data bus. |
| 21 | B3 | | Data bus. |
| 22 | B4 | | Data bus. |
| 23 | G0 | | Data bus. |
| 24 | G1 | | Data bus. |
| 25 | G2 | | Data bus. |
| 26 | G3 | | Data bus. |
| 27 | G4 | | Data bus. |
| 28 | G5 | | Data bus. |
| 29 | R0 | | Data bus. |
| 30 | R1 | | Data bus. |
| 31 | R2 | | Data bus. |
| 32 | R3 | | Data bus. |
| 33 | R4 | | Data bus. |
| 34 | RESET | | RESET |
| 35 | CS | | Chip selection. |
| 36 | SCL | | Serial interface clock. |
| 37 | SDA | | Serial in/out signal. |
| 38 | IM1 | | IM1 |
| 39 | IM2 | | IM2 |
| 40 | IOVCC | | Power supply for digital interface |

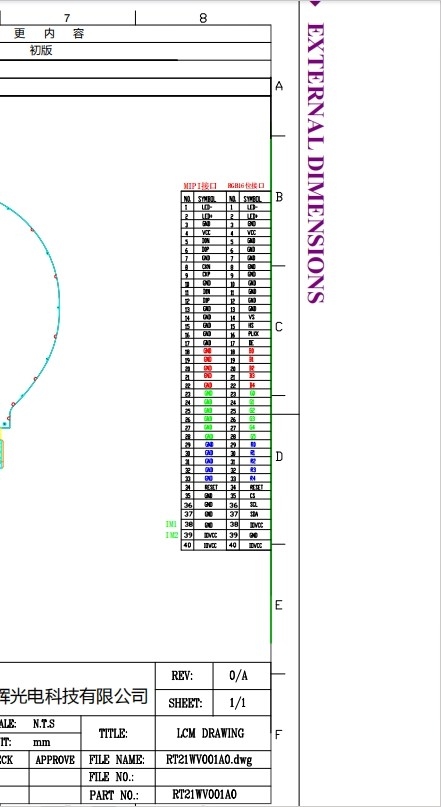

External Dimensions
