    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT20QV126A
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized


    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    ItemSpecification
    Size:2.0inch
    Display mode
    Transmissive TFT
    part NO.
    RT20QV126A
    Rselution240*320
    Outline size
    36.02(H) X 51.60(W) X2.0 (T)
    Active area
    30.60(W) X40.80 (H)
    View direction
    ALL
    Piexl pitch
    240X(RGB)X320
    Backlight3LEDS
    Surface luminance280-320cd/m2
    Logic voltage2.5V-3.0V
    Operating temperature
    -20℃~70℃
    Storage temperature
    -30℃~80℃
    Weight

    TBD


    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

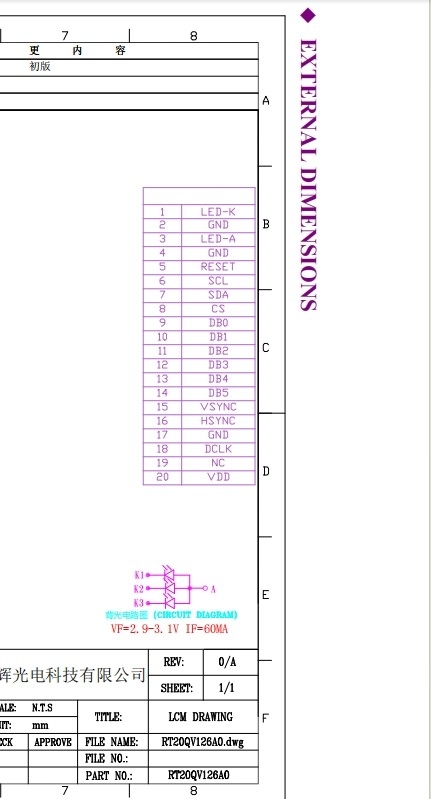

    NO.SymbolLevelFunction
    1LEDKLED powercathode
    2GNDGround
    3LEDALED power anode
    4GNDGround
    5RESETReset signal.
    6SCLSerial interface clock.
    7SDASerial in/out signal.
    8CsH/LChip selection.
    9-14DB0-DB5Data bus.
    15VSYNCFrame synchronizing signal for RGB.
    16HSYNCLine synchronizing signal for RGB
    17GNDGround
    18DCLKH/LDot clock signal for RGB.
    19NCNo connection.
    20VCCPower setting

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized


    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    240x360 RGB IPS TFT LCD Display Module 2Inch 320cd/M2 Customized

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
