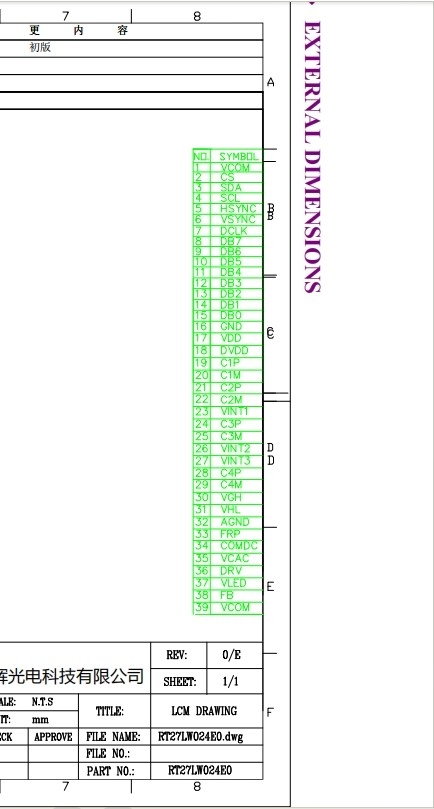

| NO. | Symbol | Level | Function |
| 1 | vCOM | | Common electrode driving voltage |
| 2 | CS | | Serial communication chip select |
| 3 | SDA | | Serial command data input |
| 4 | SCL | | Serial command clockinput |
| 5 | HSYNC | | Horizontal sync input |
| 6 | VSYNC | | Vertical syn input |
| 7 | PCLK | | Data clock input |
| 8-15 | D7-D0 | | Data bus |
| 16 | GND | | Ground. |
| 17 | VDD | | Power setting |
| 18 | DVDD | | Power setting capacitor connecting pins. |
| 19 | C1P | | Capacitor connect pin for internal charge pump |
| 20 | C1M | | Capacitor connect pin for internal charge pump |
| 21 | C2P | | Capacitor connect pin for internal charge pump |
| 22 | C2M | | Capacitor connect pin for intermal charge pump |
| 23 | VINT1 | | Power setting capacitor connect pin. |
| 24 | C3P | | Capacitor connect pin for intermal charge pump |
| 25 | C3M | | Capacitor connect pin for intermal charge pump |
| 26 | VINT2 | | Power setting capacitor connect pin. |
| 27 | VINT3 | | Power setting capacitor connect pin. |
| 28 | C4P | | Capacitor connect pin for internal charge pump |
| 29 | C4M | | Capacitor connect pin for internal charge pump |
| 30 | VGH | | Power setting capacitor connect pin |
| 31 | VHL | | Power setting capacitor connect pin |
| 32 | AGND | VSs | Ground. |
| 33 | FRP | | Frame polarity output for panel VCOM. |
| 34 | COMDC | | vCOM DC voltage outputpin |
| 35 | VCAC | | Power setting capacitorforVCOMAC |
| 36 | DRV | | Power transistor signal for back light power boost
converter. |
| 37 | VLED | | LED power anode |
| 38 | FB | | LED power cathode |
| 39 | VCOM | | Common electrode driving voltage |
 |  |
