    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT28VG007E
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    ItemSpecification

    Size:

    2.8inch

    Display mode

    Transmissive TFT

    Part NO.

    RT28VG007E

    Resolution

    480*(RGB)*640

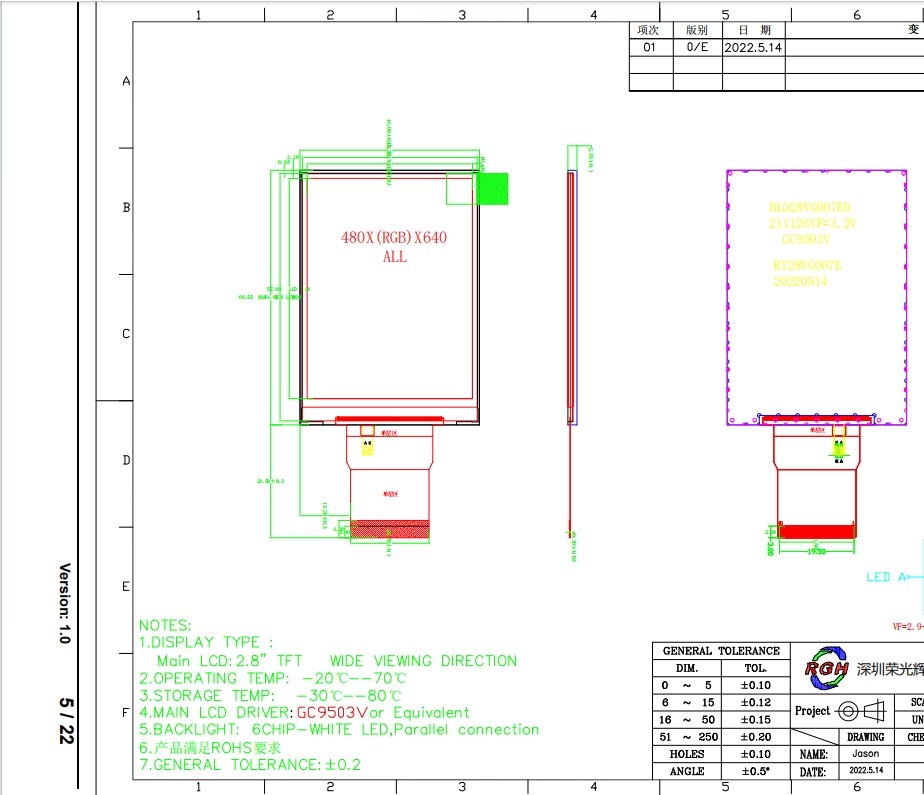

    Outline size

    46.90 (W) X66.45(H) X2.35(T)

    Active area

    43.20(W) X57.60 (H)

    View direction

    ALL o’clock

    Piexl pitch

    480(RGB)X640

    Interface

    MIIPI 2L /RGB16BIT

    Backlight

    6LEDS

    Surface luminance

    400cd/m2

    Logic voltag

    2.5 V-3.3V

    Operating temperature

    -20℃~70℃

    Storage temperature

    -30℃~80℃

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

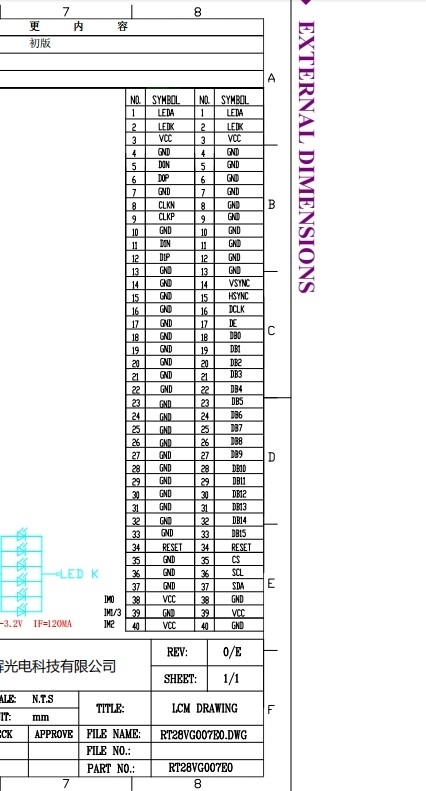

    NO.SymboLeveFunction
    RGB
    1LEDAIFD A
    2LEDKLED K
    3VCC2.8VPower setting
    4-13GNDGround pin for analog circuits
    14VSFrame synchronizing signal for RGB
    15HSLine synchronizing signal for RGB.
    16DCLKDot clock signal for RGB.
    17DEDE
    18-22B0-B4Data bus.
    23-28G0-G5Data bus
    29-33R0-R4Data bus.
    34RESETRESET PIN
    35CsChip selection.
    36SCLSerial interface clock.38 CS
    37SDASerial in/out signal.
    38GNDGroundpin for analogcircuits
    39VCC2.8VPower setting
    40GNDGround pin for analog circuits
    MIPI
    1LEDALED A
    2LEDKLED K
    3VCC2.8VPower setting
    4GNDGround pin for analog circuits
    5DN0Mipi data signal
    6DP0Mipi data signal
    7GNDGround pin for analog circuits
    8CKNMipi clock signal
    9CKPMipi clock signal
    10GNDGround pin for analogcircuits
    11DN1Mipi data signal
    12DP1Mipi data signal
    13-33GNDGround pin for analog circuits
    34RESETRESET PIN
    35-37GNDGround pin for analog circuits
    38VCC2.8VPower setting
    39GNDGround pin for analog circuits
    40VCC2.8VPower setting

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640


    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    Industrial Digital IPS TFT LCD Display Panel 2.88 Inch 480x640

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
