    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT32QV002A
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    ItemSpecification

    Size

    3.2inch

    Display mode

    Transmissive TFT

    Part NO.

    RT32QV002A

    Resolution

    240*320

    Outline size

    53.60(H) X 76(W) X2.45(T)

    Active area

    48.60(W) X64.80 (H)

    View direction

    ALL o’clock

    Piexl pitch

    240X(RGB)X320

    Interface

    MCU

    Backlight

    6LEDS

    Surface luminance

    420cd/m2

    Logic voltage

    2.5V-3.3V

    Operating temperature

    -20℃~70℃

    Storage temperature

    -30℃~80℃

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

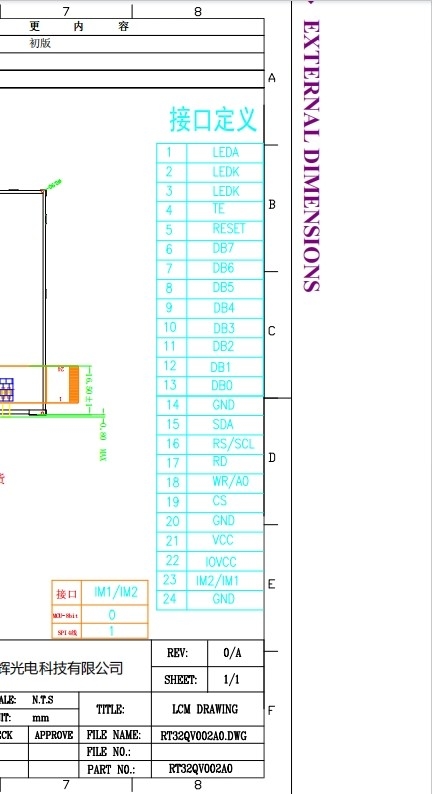

    NOSymboLeveFunction
    1LEDALED,anode
    2-3LEDKLED,cathode
    4TETE
    5RESETThis signal will reset the device and it must be
    applied to properly
    6-13DB7-DB0data bus.
    14GNDGround
    15SDAGround (0V)serial port data input end
    16RS/SCL-Display data/command selection pin in parallel
    interface
    17RD-Read enable in 8080 MCU parallel interface
    18WR/A0-Write enable in MCU parallel interface
    19CsChip selection pin
    20GNDGround
    21VCCsystem voltage
    22IOVCCsystem voltage
    23IM2/IM1
    24GNDGround

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter DisplayIndustrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display


    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    Industrial Digital HD IPS LCD TFT Spi 240x320 3.2 Inch Meter Display

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the CTP?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 20 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
