    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    Ask Lasest Price
    Brand Name : RGH
    Model Number : RT55HD011A
    Price : Negotiable
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 3.5kk
    Delivery Time : 3-5weeks
    • Product Details
    • Company Profile

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    ItemSpecification

    Size

    5.45inch

    Display mode

    Transmissive TFT

    Part NO.

    RT55HD011A

    Resolution

    720*1440

    Outline size

    65.02(H) X131.43(V) X3.06(T) mm

    Active area

    61.88(H) X123.77(V)

    View direction

    ALL o’clock

    Piexl pitch

    720(RGB)X1440

    Interface

    MIPI

    Backlight

    14LEDS

    Surface luminance

    1050cd/m2

    Logic voltage

    2.5V-3.3V

    Operating temperature

    -20℃~70℃

    Storage temperature

    -30℃~80℃

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

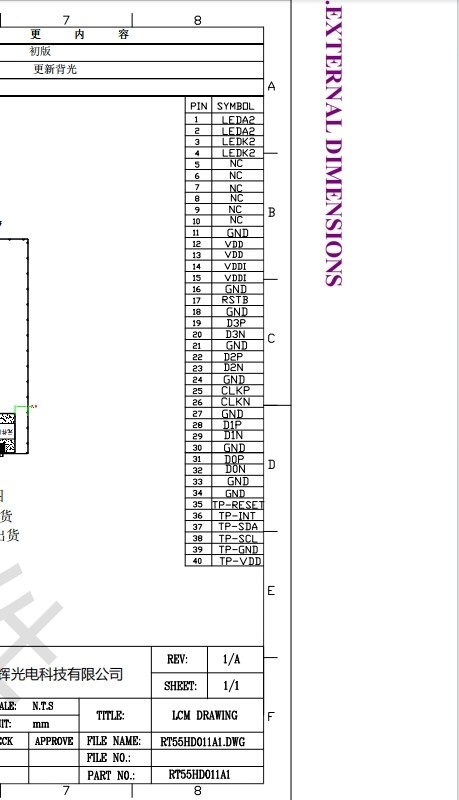

    NOSymboLeveFunction
    1-2LEDA2LED anode
    3-4LEDK2LED cathode
    5-10NCNC
    11GNDGround
    12-13VDDPowor sotting
    14-15IOVCCA supply voltage to the digital circuit.Connect to an external power
    supply of 1.65~3.3V
    16GNDGround
    17RESETInitialize the chip with a low input.Be sure to execute a power-on
    reset after supplying power
    18GNDGround
    19D3PMIPI DSI differential data pair
    20D3NMIPI DSIdifferential data pair
    21GNDGround
    22D2PMIPI DSI differential data pair
    23D2NMIPI DSIdifferentialdata pair
    24GNDGround
    25CLKPMIPI DSI differential clock pair
    26CLKNMIPI DSI differential clock pair
    27GNDGround
    28D1PMIPI DSI differential data pair
    29D1NMIPI DSI differential data pair.
    30GNDGround
    31D⁰pMIPI DSI differential data pair.
    32D0NMIPI DSI differential data pair.
    33-34GNDGround
    35TP-RSTTP-RST
    36TP-INTTP-INT
    37TP-SDAP-SDA
    38TP-SCLTP-SCL
    39TP-GNDTP-GND
    40TP-VDDTP-VDD

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots


    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    5.5 Inch LCD TFT Display Module 720x1440 For Medical Industrial Robots

    FAQ


    1: What are the payment terms?
    A: We usually accept T/T, Paypal, other terms to be negotiated.


    2: What’s the lead time?
    A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).


    3. Do you support custom logo on the LCM?

    A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.


    4. How can I place a sample order?

    A: Pls send us your inquiry, our sales will contact you soon.


    5. What size LCD display can you provide?

    A: 0.96 inch to 21.5 inch TFT LCD display we can provide.


    7. What's your MOQ?

    A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.


    8. What shipping ways do you support?

    A: We can consult with it.
